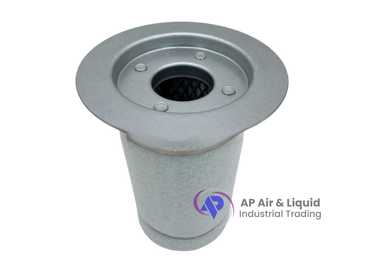

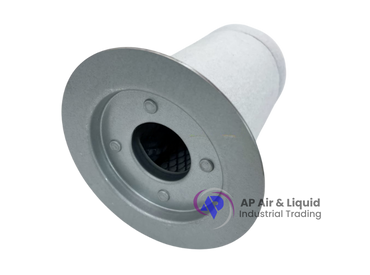

Direct Source Quality Oil Separators for Rotary Screw Compressors CF13090170N 6.3672.1 6.3672.0 6.3672.1 6.3792.0 6.3792.1 6.3672.2 6.3792.2 CF12890170N

Investing in Your Operations, Securing Your Future: Choosing AP Air & Liquid is an investment in reliable, high-quality supplies that contribute to the efficiency and longevity of your industrial operations.

Product Name	Oil Separator
Item Code	CF13090170N 6.3672.1 6.3672.0 6.3672.1 6.3792.0 6.3792.1 6.3672.2 6.3792.2 CF12890170N
Compatible Brand/s	Please Inquire
MOQ	1
Place Of Manufacture	China
Shipping Origin	China
Product Color	As Built
Delivery Leadtime	5 to 15 days Via Airfreight
Item Net Weight	Please Inquire

GET QUOTE

Related Products

Activated Carbon

Air Compressors

Air Filter

Air Oil Separator

Oil Filters

Line Filters

Media

Oil & Lubricant

Conveyor Belt

Pumps

Direct Source Quality Oil Separators for Rotary Screw Compressors

Oil Separator Standard Specification

Air flow(m³/min)	OD d1(mm)	Flange d2(mm)	ID d3(mm)	Height h(mm)
3.5	135	170	75	160
4.5	135	170	75	200
6.8	135	170	75	305
5.0	170	200	109	180
6.5	170	200	109	230
9.0	170	200	109	305
12	170	200	109	400
9.0	220	273	157	230
12	220	272	157	305
16	220	288	157	400
25	220	272	157	612
15	275	328	209	305
20	275	328	209	400
25.5	275	328	209	500
16	300	355	220	305
22	300	355	220	400
28	300	355	220	500
32	300	355	220	540
34	300	355	220	600
40	300	355	220	700
40	350	430	265	550
39	400	434	314	520
43	400	439	314	600
46.5	400	434	314	620
